Small FRP oil Separators
Efficient FRP Oil Separators for ETP
₹55000.00₹53200.00

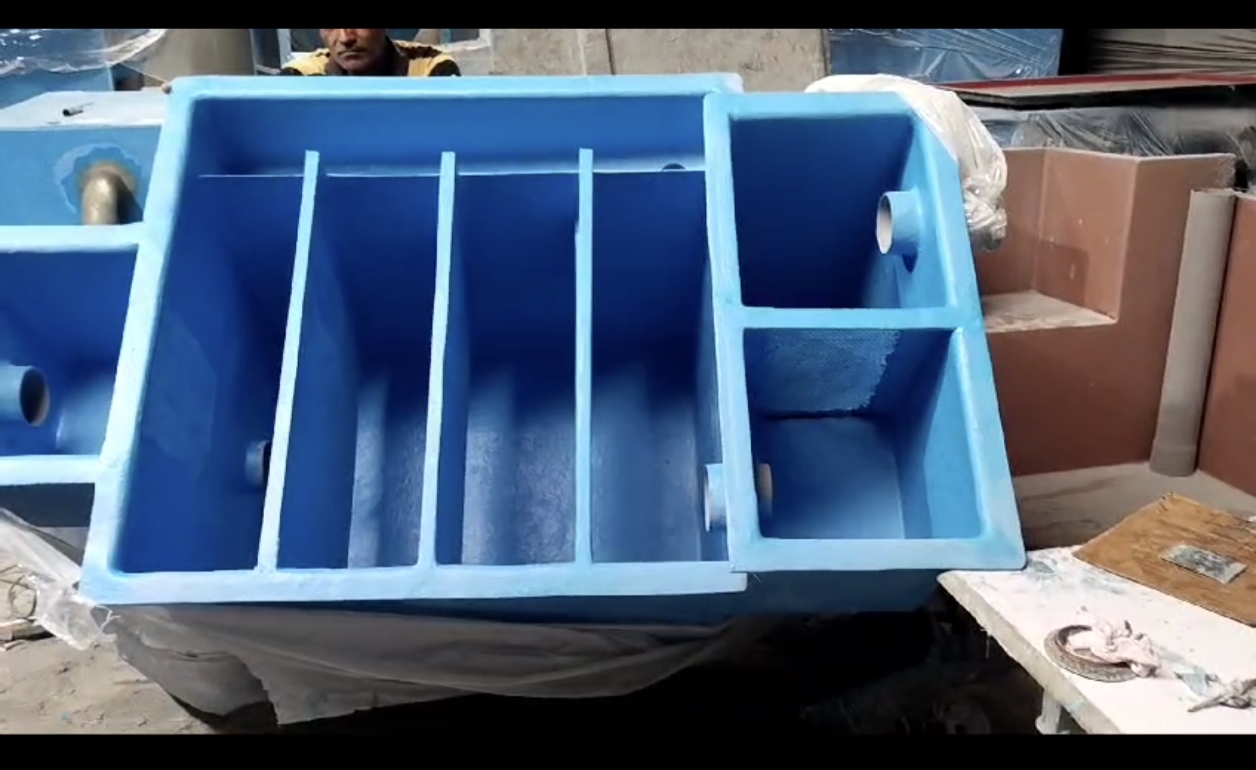

Small FRP Oil Separator – Compact & Corrosion-Resistant Design
Product Description:
The Small FRP Oil Separator is a compact, lightweight, and highly durable solution for removing oil, grease, and suspended solids before biological or chemical wastewater treatment. Designed using high-quality FRP (Fiber Reinforced Plastic), it offers excellent corrosion resistance, longer lifespan, and easy installation compared to RCC or steel structures.
Technical Specifications:
Parameter | Specification |
|---|---|
Material | FRP (Fiber Reinforced Plastic) |
Width | 1.0 m |
Length | 1.8 m |
Height (Outer) | 0.90 m |
Effective Water Height | 0.80 m |
Mesh Placement Height | 45 cm from ground |
Mesh Size | 40 cm × 24 cm (SS/GI as per requirement) |
Inlet Pipe Centre Height | 80 cm from ground |
Internal Sections & Flow Dimensions:
Section | Dimension |
|---|---|
A | 90 cm |
B | 45 cm |
C | 110 cm |
D | 2.5 cm (slot/channel depth) |
E | 30 cm |
F | 35 cm (without gutter) |
G | 20 cm |
Why FRP Construction?
✔ Rust-free & corrosion-resistant – Ideal for oil, grease, and chemical exposure
✔ Lightweight and easy to install or relocate
✔ No leakage or cracking like RCC tanks
✔ Smooth inner surface for easy cleaning and maintenance
✔ High structural strength with long service life
Applications:
✅ Laundry wastewater treatment plants
✅ Automobile service stations & car wash facilities
✅ Industrial oil & grease separation units
✅ Hotels, restaurants & commercial kitchens
✅ Pre-treatment for ETP/STP systems
Available Customizations:
Flow capacity: 5 KLD – 50 KLD
Mesh type: SS / GI / HDPE
Inlet/outlet height & diameter adjustments
Optional sludge drain, oil skimmer & outlet gutter
